3.D Printing Materials
While all of Nexa3D printers are built on an open material platform, we offer a broad and growing selection of already qualified materials for all of your resin and thermoplastic 3D printing needs.
Resin 3D Printing Materials
Use with XiP Pro, NXE 400Pro, and XiP
Thermoplastic 3D Printing Materials
Use with QLS 820, QLS 236, and QLS 230
-

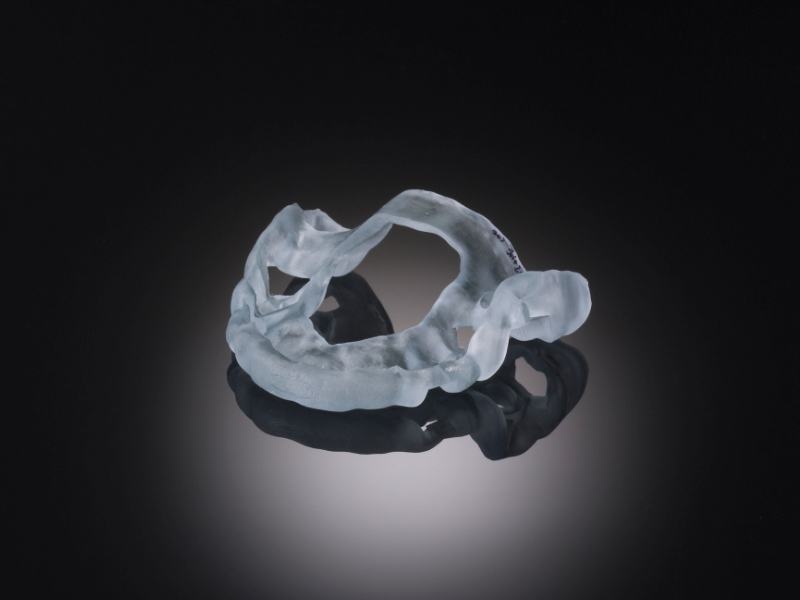

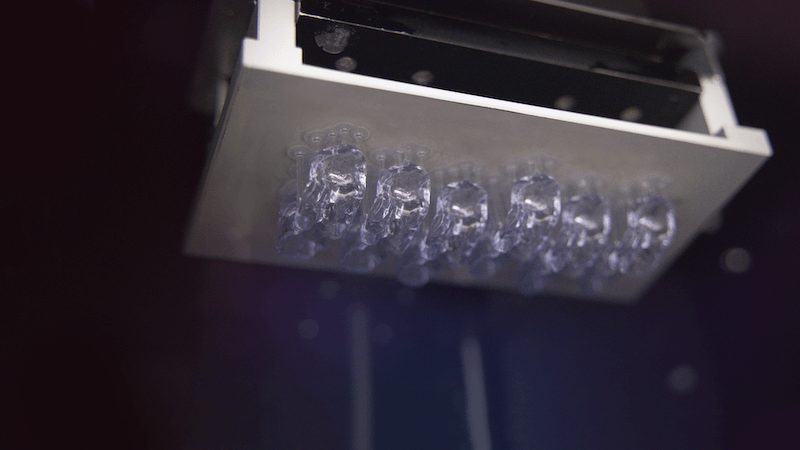

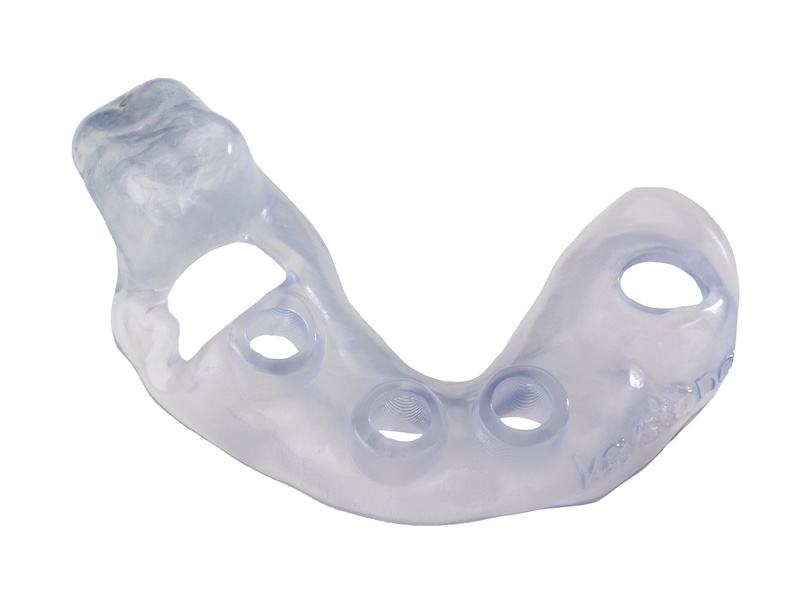

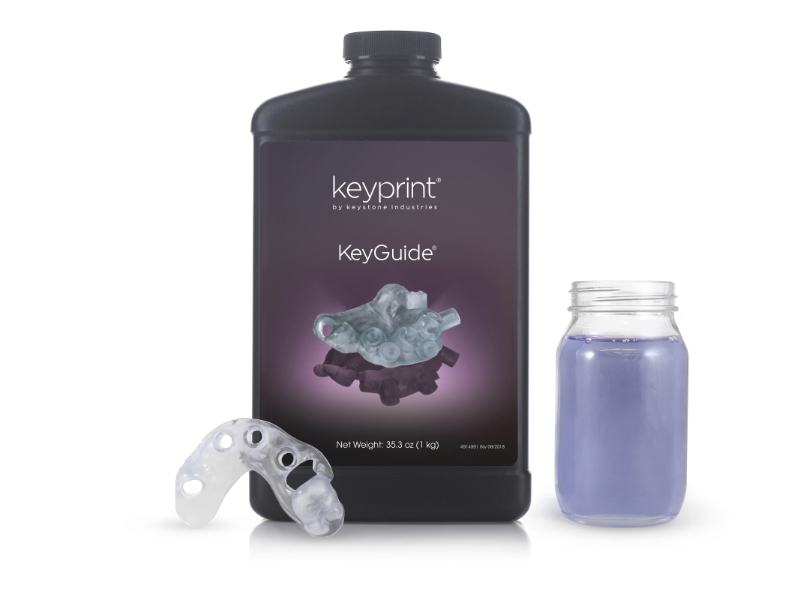

KeyGuide
Measurement Value Unit Test Method Flex Modulus 2400 MPa ASTM D790 Flex Strength 105 MPa ASTM D790 Biocompatibility Pass /ISO 10993-5 Biocompatibility Pass /ISO 10993-10 -

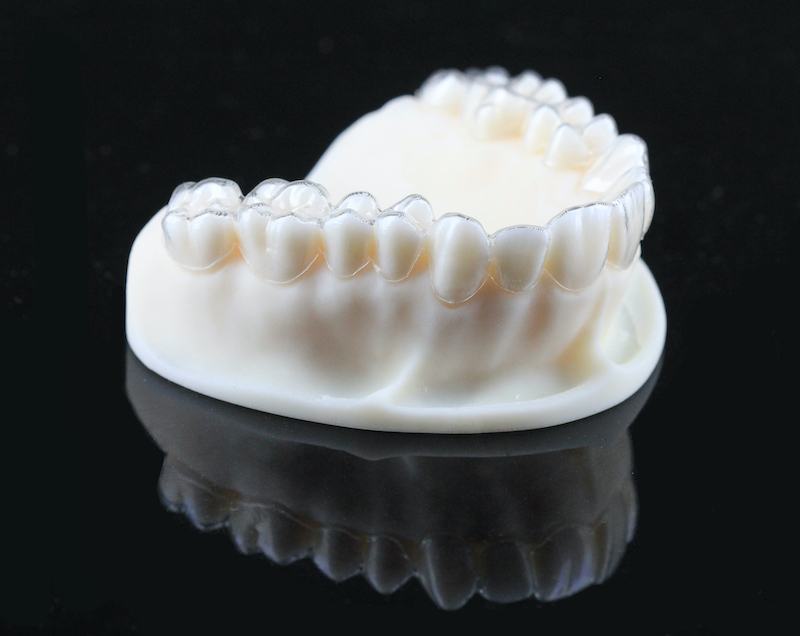

KeyModel Ultra – Ivory
Measurement Value Unit Test Method Tensile Modulus >1700 MPa D638 Ultimate Tensile Strength >50 MPa D638 Tensile Elongation at Break 5 % D638 Flex Modulus >1940 MPa D790 Flex Strength >70 MPa D790 -

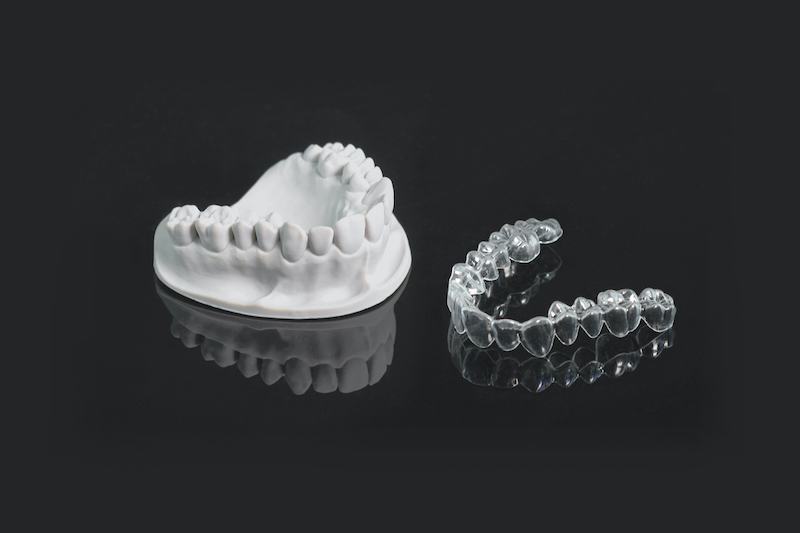

KeyModel Ultra – Light Gray
Measurement Value Unit Test Method Tensile Modulus >1700 MPa D638 Ultimate Tensile Strength >50 MPa D638 Tensile Elongation at Break 5 % D638 Flex Modulus >1940 MPa D790 Flex Strength >70 MPa D790 -

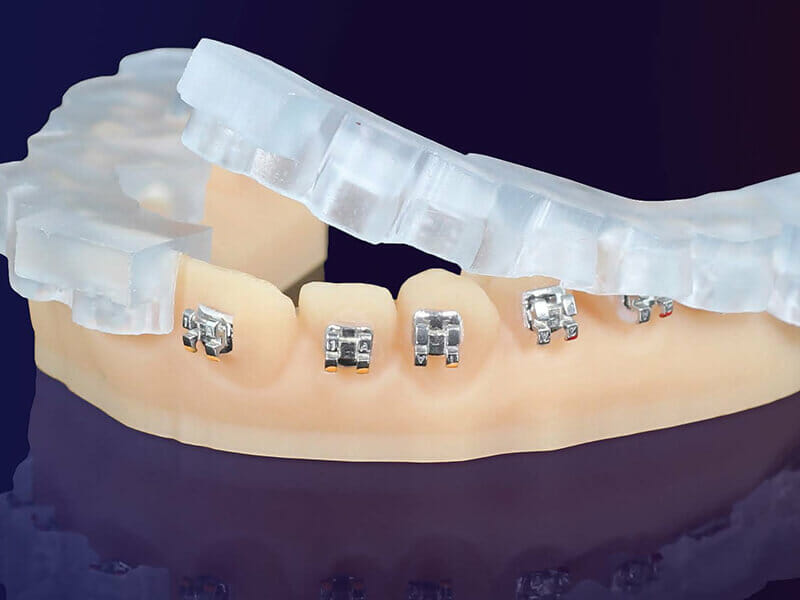

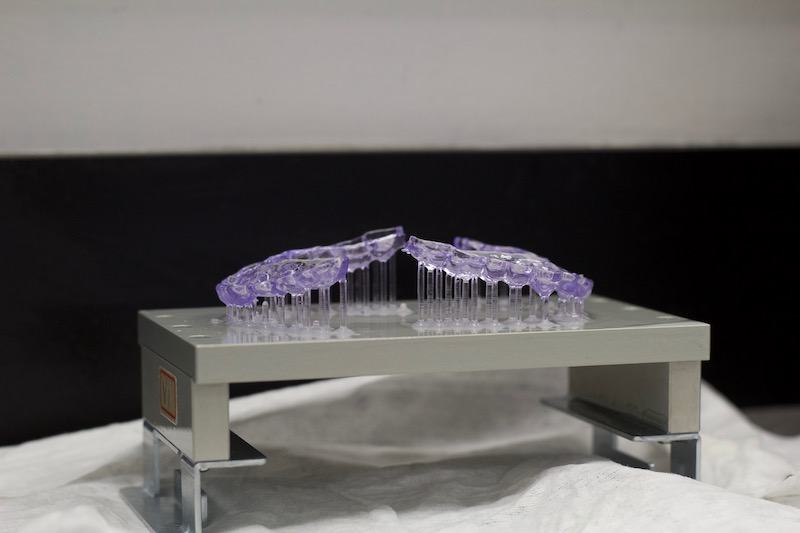

KeyOrtho IBT
Measurement Value Unit Test Method Tensile Strength (MPa) 8.0 – 10.5 MPa ASTM D638 Tensile Young’s Modulus (MPa) 15.5 – 31.0 MPa ASTM D638 Elongation at Break (%) >130 % ASTM D638 Biocompatibility Pass ISO 10993-5 Viscosity @ 25°C (cP) <1000 ASTM 7867 Orthodontic Adhesive Release Pass -

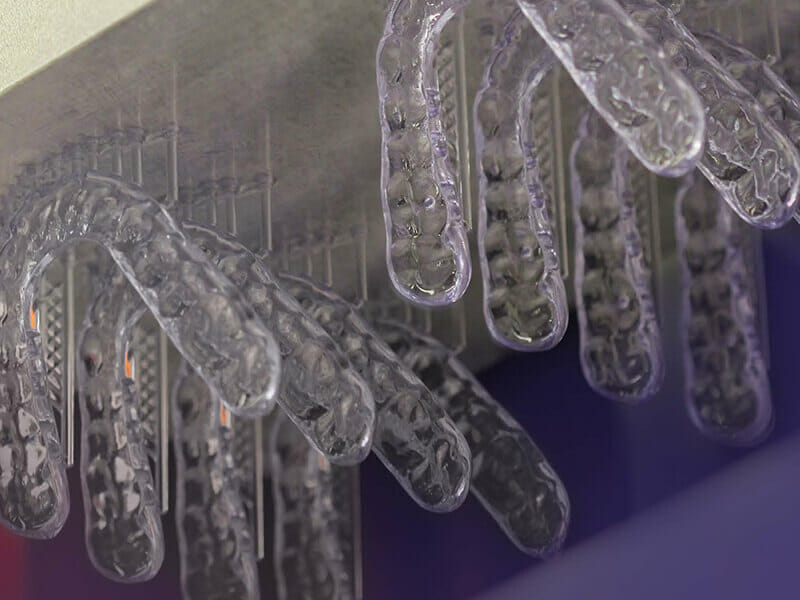

KeySplint Hard
Measurement Value Unit Test Method Flexural Strength 60-65 MPa ISO 20795-2 Flexural Modulus 1510-1600 MPa ISO 20795-2 Water Sorption 18 μg/mm3. ISO 20795-2 Elongation at Break 9 % ASTM D638 Biocompatibility Pass ISO 10993 -

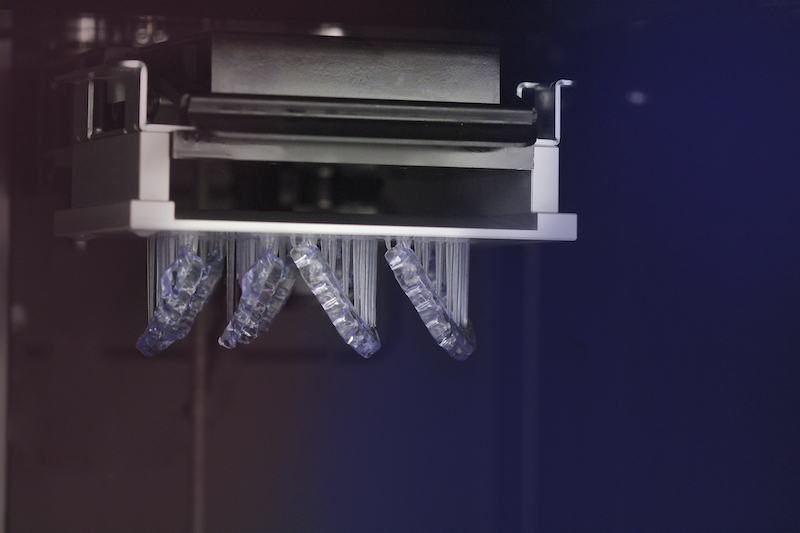

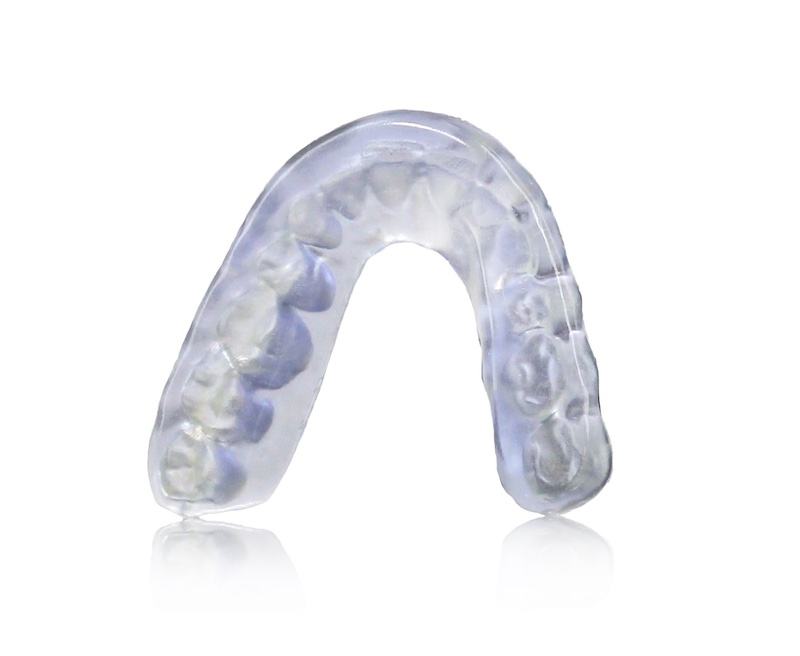

KeySplint Soft
Measurement Value Unit Test Method Tensile Elongation at Break >110 % D638 Flex Modulus 1100 MPa ASTM D790 Flex Strength 44 MPa ASTM D790 Flex Modulus 135 MPa ISO 20795-2 Flex Strength 2.6 MPa ISO 20795-2 Hardness (Shore D) 80 ASTM D2240 HDT @0.45 MPa 3.2 oC ASTM D648 Sorption <18 μg/mm3 ISO 20795-2 Solubility <4.8 μg/mm3 ISO 20795-2 Free Monomer Extraction Pass ISO 20795-2 Cytotoxicity Pass ISO 10993 Irritation Pass ISO 10993 Sensitization Pass ISO 10993 -

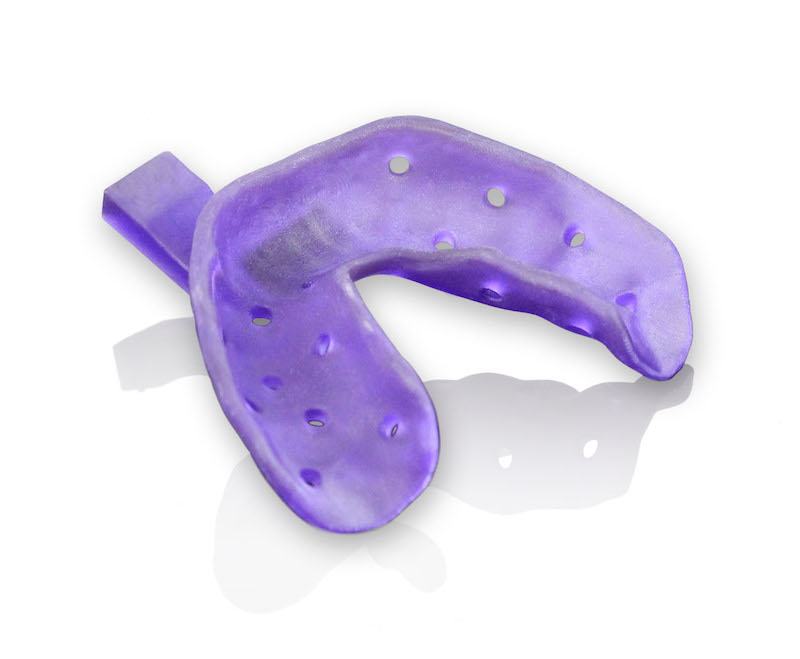

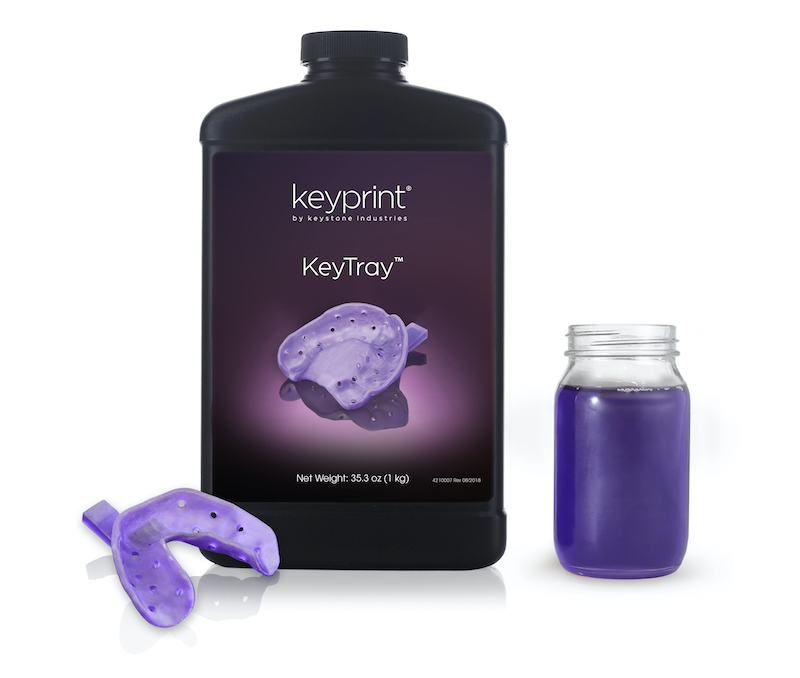

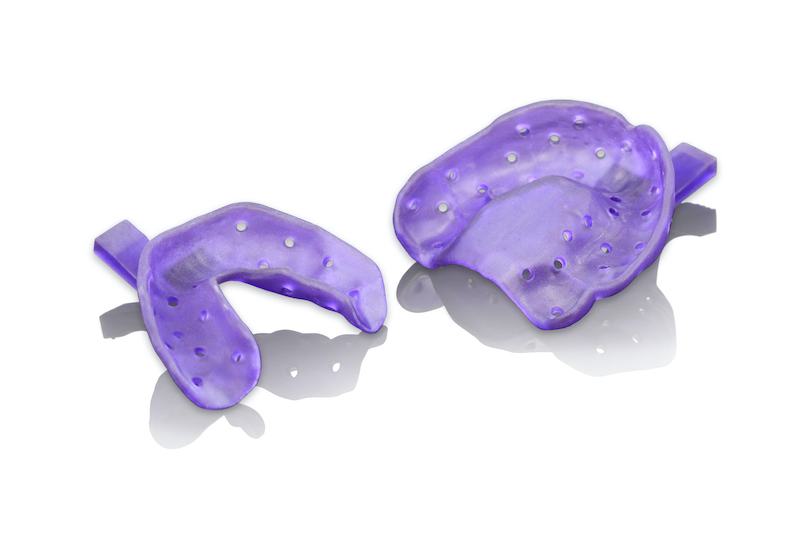

KeyTray
Measurement Value Unit Test Method Tensile Modulus/ASTM D638 2056 MPa ASTM D638 Ultimate Tensile Strength 62 MPa ASTM D638 Tensile Elongation at Break 26 % ASTM D638 Flex Modulus 1913 MPa ASTM D790 Flex Strength 85 MPa ASTM D790 Hardness (Shore D) 86 ASTM D2240 -
PK 5000
Low temperature impact strength, Excellent chemical resistance and barrier properties, Improved wear and friction over PolyamidesTechnical DatasheetMeasurement Value Unit Test Method Tensile Modulus 1349 MPa ASTM D638* Ultimate Tensile Strength 51 MPa ASTM D638* Elongation at Break 21 % ASTM D638* Flexural Modulus 1068 MPa ASTM D790* Flexural Strength 42 MPa ASTM D790* Part Density 1.23 g/cm3. ASTM D792 Bulk Density 0.51 g/cm3. ASTM D1895 Melt Temperature 197 °C DSC Heat Deflection Temperature (0.455 MPa) 157 °C ASTM D648* -

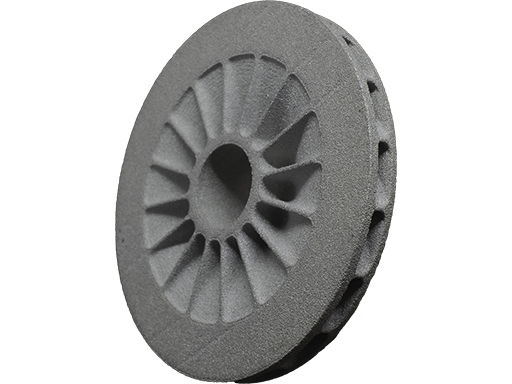

Stainless Steel 17-4PH
A stainless and hardenable alloy with high wear resistance with corrosion resistance. Typically used for industrial applications.Technical DatasheetMeasurement Value Unit Test Method Tensile strength 1,310 MPa ASTM A564 H900 Yield strength 1,170 MPa ASTM A564 H900 Elongation 10 % ASTM A564 H900 -

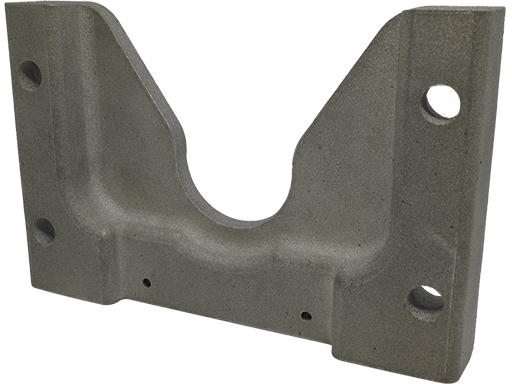

Stainless Steel 316L
Typically used for components with high demands for corrosion resistance. Easily welded.Technical DatasheetMeasurement Value Unit Test Method Tensile strength MPa 485 ASTM B348 Yield strength MPa 170 ASTM B348 Elongation % 40.0 ASTM B348 -

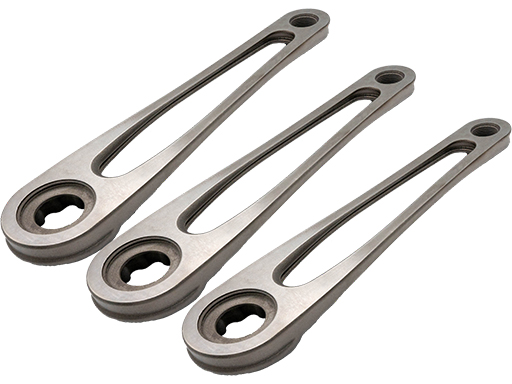

Titanium (Ti6AL4v)
High strength, lightweight, and good corrosion resistance. Excellent for aerospace and biocompatible medical applications.Technical DatasheetMeasurement Value Unit Test Method Tensile strength 890 MPa ASTM B348 Yield strength 790 MPa ASTM B348 Elongation 8 % ASTM B348 -

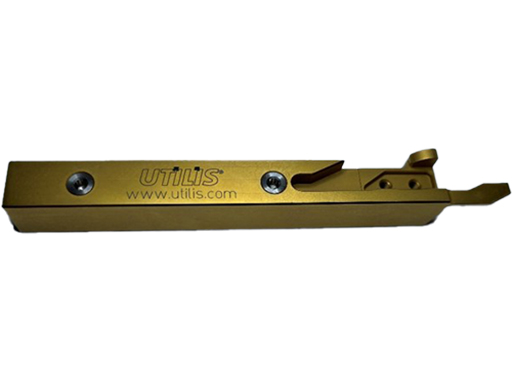

Tool Steel M2
A hardenable, high-speed steel with well-balanced toughness, wear resistance and high hardness.Technical DatasheetMeasurement Value Unit Test Method Tensile strength 1,100 MPa AISI M2 Yield strength 700 MPa AISI M2 Hardness 47.7 % AISI M2 -
x45-Black
Measurement Value Unit Test Method Tensile Modulus >1.6 GPa ASTM D638 Ultimate Tensile Strength >52 MPa ASTM D638 Tensile Elongation at Break >12 % ASTM D638 Flex Modulus >2.1 GPa ASTM D790 Flex Strength >95 MPa ASTM D790 Hardness (shore D) 84 ASTM D2240 Notched Izod 20 J/m ASTM D256 Water Absorption 6 % ASTM D570 -

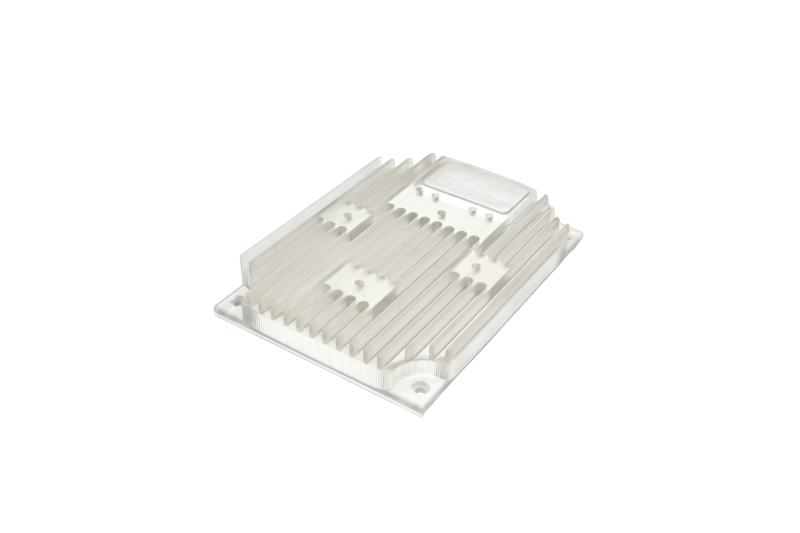

x45-Clear
Measurement Value Unit Test Method Tensile Modulus >1.6 GPa ASTM D638 Ultimate Tensile Strength >52 MPa ASTM D638 Tensile Elongation at Break >12 % ASTM D638 Flex Modulus >2.1 Gpa ASTM D790 Flex Strength >95 Mpa ASTM D790 Hardness (shore D) 85 ASTM D2240 Notched Izod 19 J/m ASTM D256 Water Absorption 6 % ASTM D570 -
x45-Natural
Measurement Value Unit Test Method Tensile Modulus >1.6 GPa ASTM D638 Ultimate Tensile Strength >52MPa MPa ASTM D638 Tensile Elongation at Break >12 % ASTM D638 Flex Modulus >2.1 GPa ASTM D790 Flex Strength >95 MPa ASTM D790 Hardness (shore D) 85 ASTM D2240 Notched Izod 20 J/m ASTM D256 Water Absorption 6 % ASTM D570 -
xABS3843
Automation Machinery, Robotics, Bracket, Levers and Arms for Manufacturing Stations, Parts and AssembliesTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Modulus 1400 MPa ASTM D638 Ultimate Tensile Strength 3.2 MPa ASTM D638 Tensile Elongation at Break 50 % ASTM D638 Flex Modulus 1400 MPa ASTM D790 Flex Strength 3.0 MPa ASTM D790 Hardness (Shore D) 86 ASTM D2240 Notched Izod 54 J/m ASTM D256 HDT @0.45 MPa 56 oC ASTM D648 Water Absorption 2.35 % ASTM D570 -

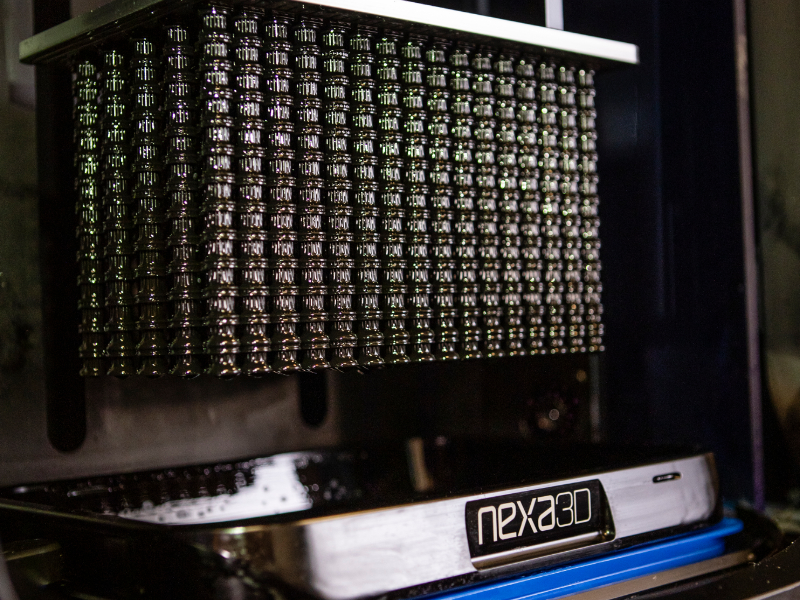

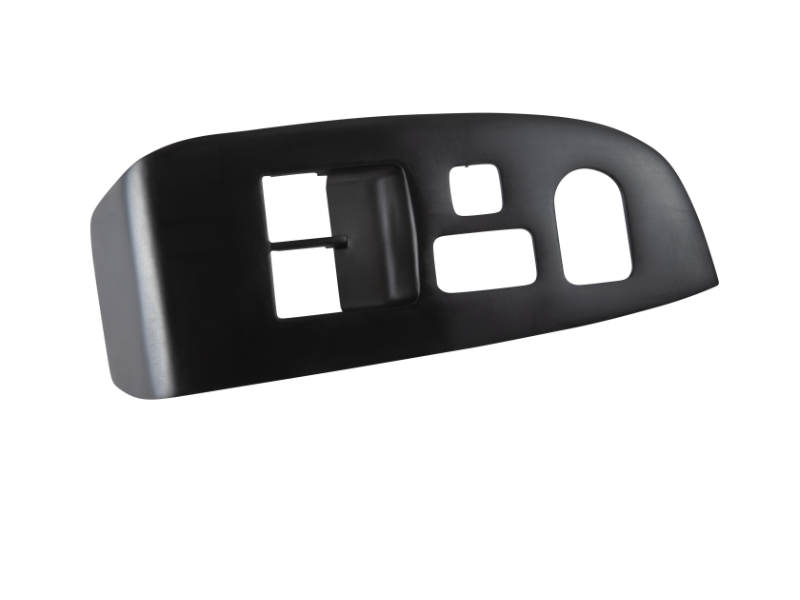

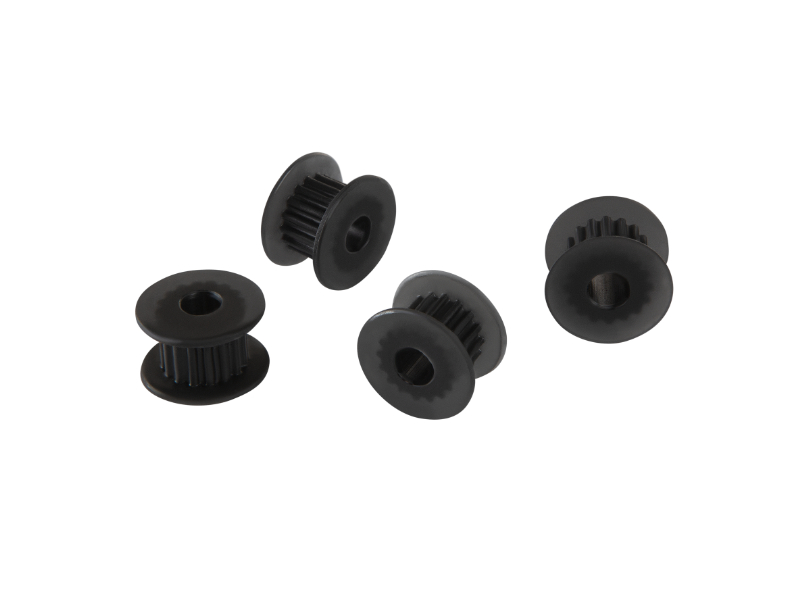

xCE-Black
Automotive Parts, Automation, Robotics, Industrial, Functional Injection Molding ToolsTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Modulus 2840 MPa ASTM D638 Ultimate Tensile Strength 69 MPa ASTM D638 Tensile Elongation at Break 8 % ASTM D638 Flex Modulus 3.250 MPa ASTM D790 Flex Strength 135 MPa ASTM D790 Hardness (Shore D) 89 ASTM D2240 Notched Izod 20 J/m ASTM D256 HDT @0.45 MPa 87 oC ASTM D648 Water Absorption 0.4 % ASTM D570 -
xCE-White
Automotive Parts, Automation, Robotics, Industrial, Functional Injection Molding ToolsTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Modulus 2840 MPa ASTM D638 Ultimate Tensile Strength 69 MPa ASTM D638 Tensile Elongation at Break 8 % ASTM D638 Flex Modulus 3.250 MPa ASTM D790 Flex Strength 135 MPa ASTM D790 Hardness (Shore D) 89 ASTM D2240 Notched Izod 20 J/m ASTM D256 HDT @0.45 MPa 87 oC ASTM D648 Water Absorption 0.4 % ASTM D570 -

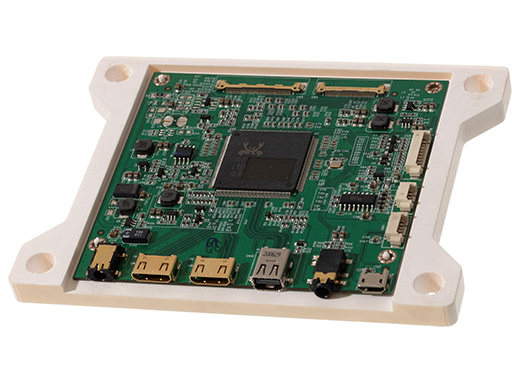

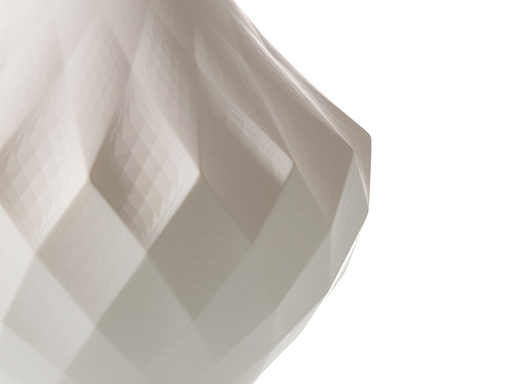

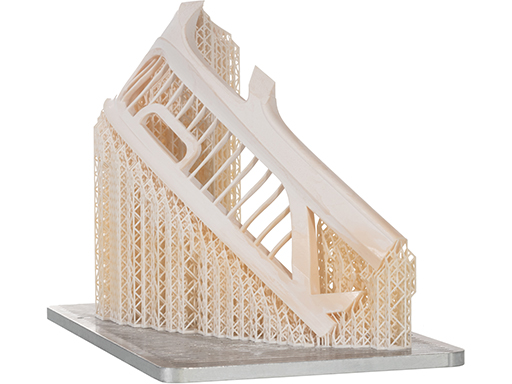

xCERAMIC3280
High Temperature, High Speed, Wind Tunnel Testing, Consumer ProductsWatch VideoMaterial data represents UV Post Cure.Technical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Modulus 10300 MPa ASTM D638 Tensile Strength 85 MPa ASTM D638 Elongation 1.2 % ASTM D638 HDT at 0.45 Mpa 205 °C ASTM D648 Solid Density 1.73 g/cm³ ASTM D792 Shore Hardness 96 D ASTM D2240 Water Absorption 0.29 % ASTM D570 -

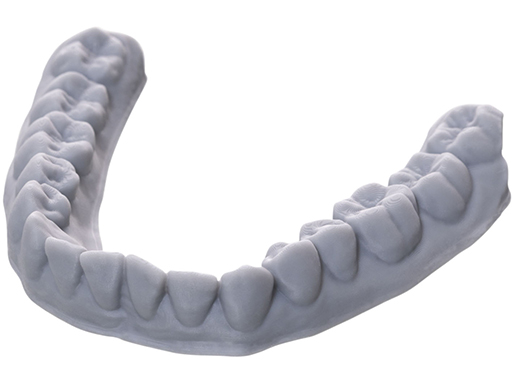

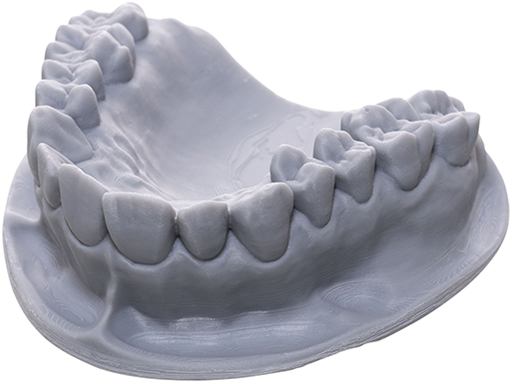

xDENT201-Gray
High-Resolution, Accuracy, Great Dimensional Stability.Watch VideoTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Stress at Break 54.92 MPa ASTM D638 Young’s Modulus 2366.65 MPa ASTM D638 Elongation at Failure 4.03 % ASTM D638 Shore Hardness (solid) 80 Shore D ASTM D2240 Viscosity @ 25°C (77°F) 3.50 mPa*s (cP) Cone/Plate Rheometer Liquid Density 1.05~1.1 g/cm3. ASTM D4052-18a -

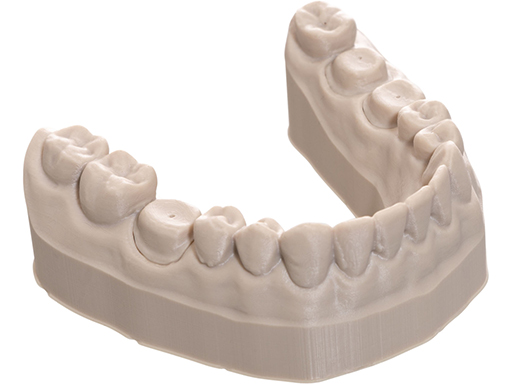

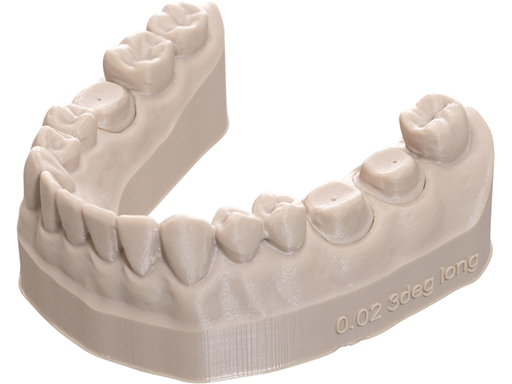

xDENT341-Beige
Measurement Value Unit Test Method Tensile Stress at Break 40.83 MPa ASTM D638 Young’s Modulus 1860.28 MPa ASTM D638 Elongation at Failure 2.69 % ASTM D638 Shore Hardness (solid) 84 Shore D ASTM D2240 Viscosity @ 25°C (77°F) 100-200 mPa*s (cP) Cone/Plate Rheometer Liquid Density 1.05~1.1 g/cm3. ASTM D4052-18a -

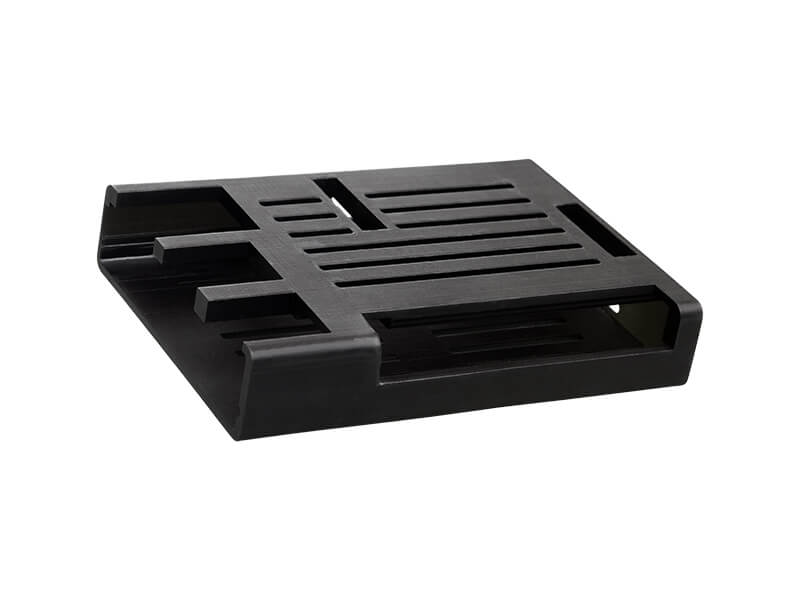

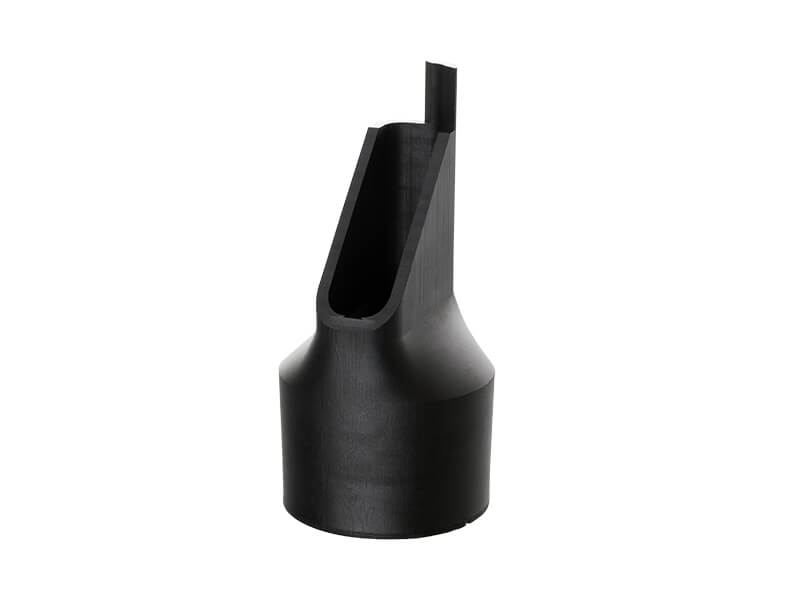

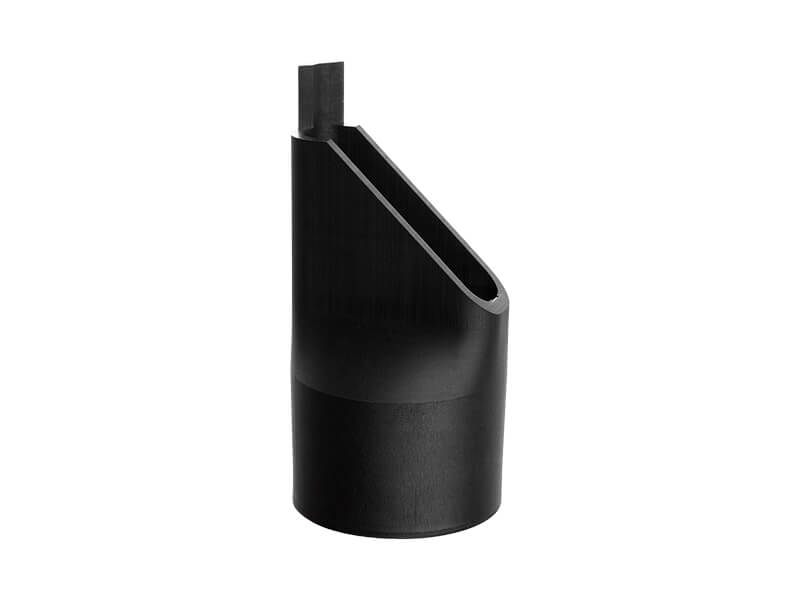

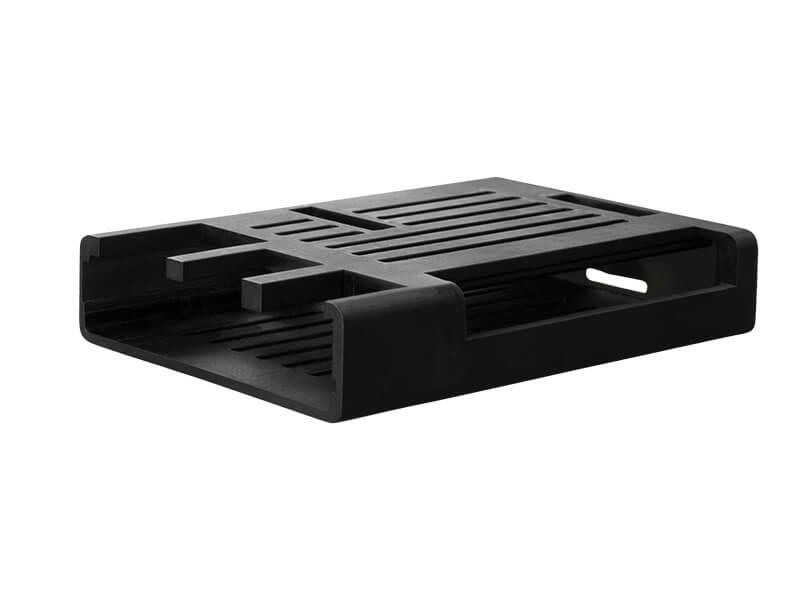

xESD
Nano-engineered ESD resin for Isotropic Static Dissipative PerformanceWatch VideoTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Strength 68.1 MPa ASTM D 638-14 Tensile Modulus 2.6 GPa ASTM D 638-14 Yield Strength 40.6 MPa ASTM D 638-14 Elongation at Break 3..8 % ASTM D 638-14 Flexural Strength 97.4 MPa ASTM D 790-15* Flexural Modulus 1.8 GPa ASTM D 790-15* 缺口悬臂梁式 24 J/m ASTM D 256-10 Shore “D” 87 ASTM D 2240-15 Heat Deflection @1.8MPa 91.4 ºC ASTM D 648 - 16 Heat Deflection @0.45MPa 91.3 ºC ASTM D 648 - 16 Surface Resistance 107 Ω ASTM D 257 Water Absorption 0.9 % ASTM D 570-98 Density 1.1 g/cm3. 25°C Viscosity 878.1 cps 25°C -

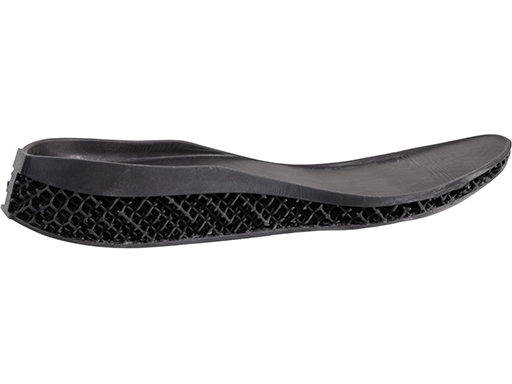

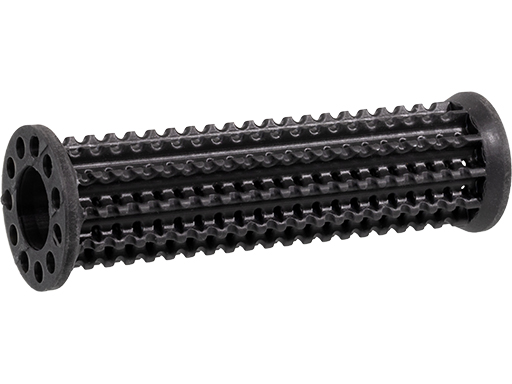

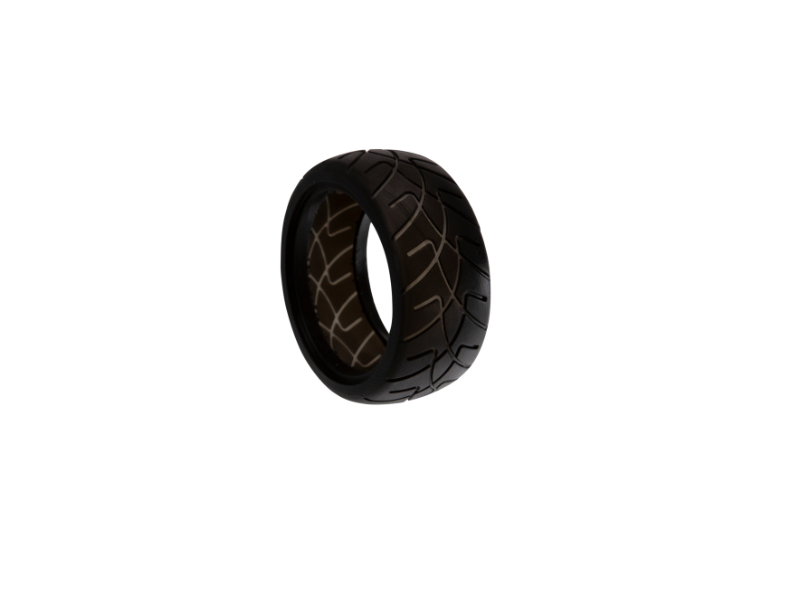

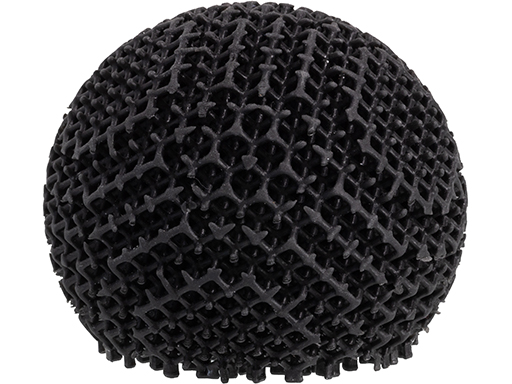

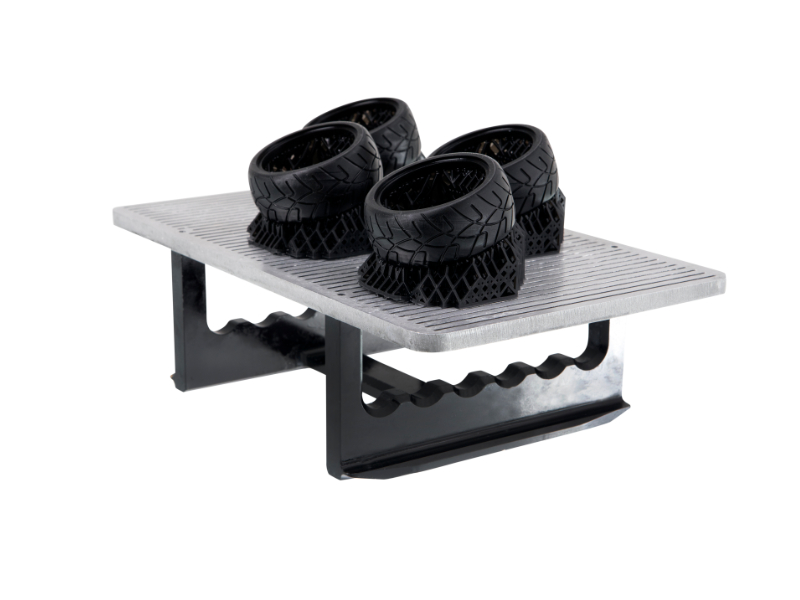

xFLEX402-Black
Semi-Firm, Rubberlike Elastomer, Prototypes and Production PartsWatch VideoTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Stress at Break 5.5 MPa ASTM D638 Young’s Modulus 42 MPa ASTM D638 Elongation at Break 230 % ASTM D638 Energy Return 3.0 – 35 % Proprietary Shore Hardness 73 A ASTM D648 Water Absorption 3..15 % ASTM D570 -

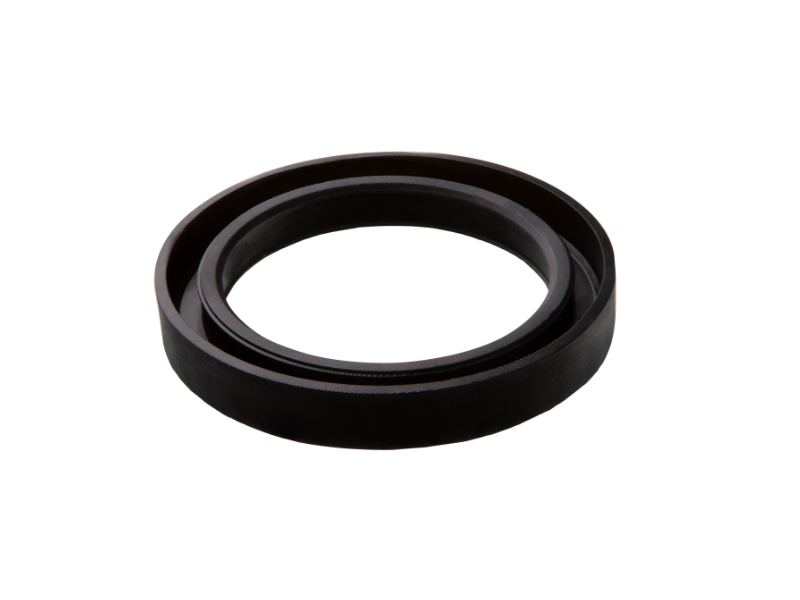

xFLEX475-Black
Pipes and Manifolds, Handles and Grips, Seals and Gaskets, Sportswear and Footwear MidsolesTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Modulus 3..7 MPa Ultimate Tensile Strength 2.5 MPa ASTM D638 Tensile Elongation at Break 150 % ASTM D638 Energy Return 47 % Internal Tear Strength 7.3 kN/m ASTM D624 Hardness (shore A) 44 A ASTM D2240 -

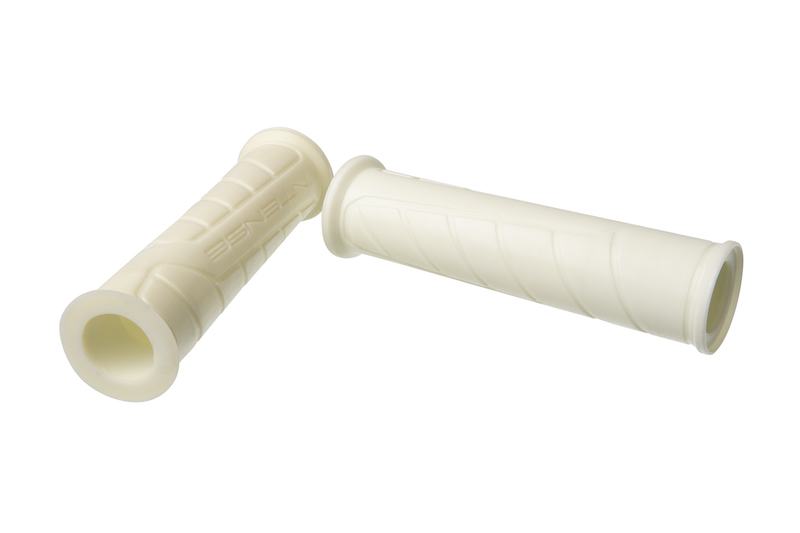

xFLEX475-White
Pipes and Manifolds, Handles and Grips, Seals and Gaskets, Sportswear and Footwear MidsolesTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Modulus 4.6 MPa Ultimate Tensile Strength 3..8 MPa ASTM D638 Tensile Elongation at Break 159 % ASTM D638 Energy Return 3.9.13 % Internal Tear Strength 11.77 kN/m ASTM D624 Hardness (shore A) 55 A ASTM D2240 -
xGPP-Gray
Quick Design Verification Models, Display Models, Models where accuracy and resolution are criticalSafety DatasheetMeasurement Value Unit Test Method Ultimate Tensile Strength 3.0-60 MPa ASTM D638 Tensile Elongation at Break 4-5.5 % ASTM D638 Hardness (Shore D) 84 – 88 ASTM D2240 HDT @0.45 MPa 59 – 61 oC ASTM D648 Water Absorption 0.4 % ASTM D570 -
xGPP-Translucent
Performance Prototype, Functional End User Parts, Air Duct, Fluid Flow Models, Snapp FitSafety DatasheetMeasurement Value Unit Test Method Ultimate Tensile Strength 3.0-60 MPa ASTM D638 Tensile Elongation at Break 4-5.5 % ASTM D638 Hardness (Shore D) 84 – 88 ASTM D2240 HDT @0.45 MPa 59 – 61 oC ASTM D648 Water Absorption 0.4 % ASTM D570 -

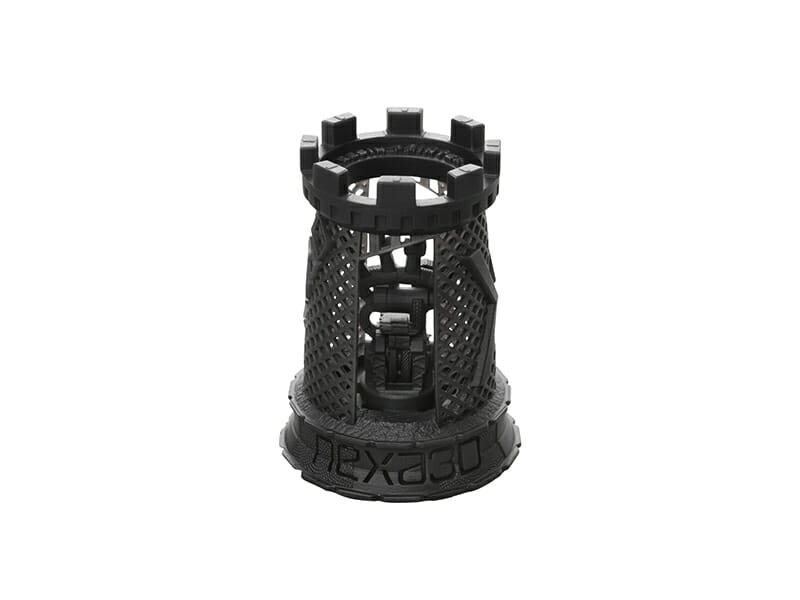

xMODEL15-Black
High Accuracy, Fast Printing Photopolymer Serves Wide Variety of Modeling ApplicationsWatch VideoTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Modulus of Elasticity 1800 MPa ASTM D638 type4 Tensile Strength 55 MPa ASTM D638 type4 Elongation at Break 10 % ASTM D638 type4 Density 1.09 – 1.10 g/cc GB/T 4472 Viscosity 200 – 300 MPA.s GB/T 22235 Hardness 78 – 80 Shore D ASTM D2240 Heat Deflection Temperature 50 °C GB/T 1634 Water absorption 0.7 % Immersion after 24 hrs -

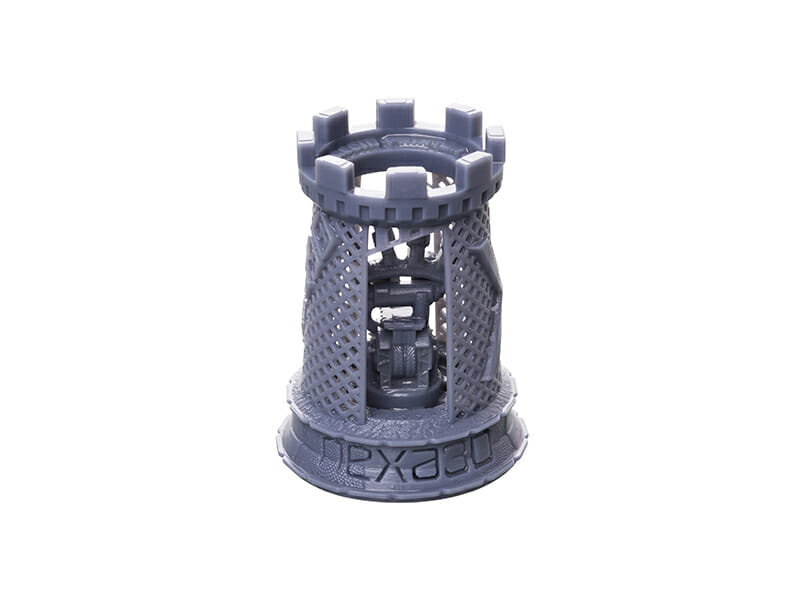

xMODEL15-Gray
High Accuracy, Fast Printing Photopolymer Serves Wide Variety of Modeling ApplicationsWatch VideoTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Modulus of Elasticity 1800 MPa ASTM D638 type4 Tensile Strength 55 MPa ASTM D638 type4 Elongation at Break 10 % ASTM D638 type4 Density 1.09 – 1.10 g/cc GB/T 4472 Viscosity 200 – 300 MPA.s GB/T 22235 Hardness 78 – 80 Shore D ASTM D2240 Heat Deflection Temperature 50 °C GB/T 1634 Water absorption 0.7 % Immersion after 24 hrs -

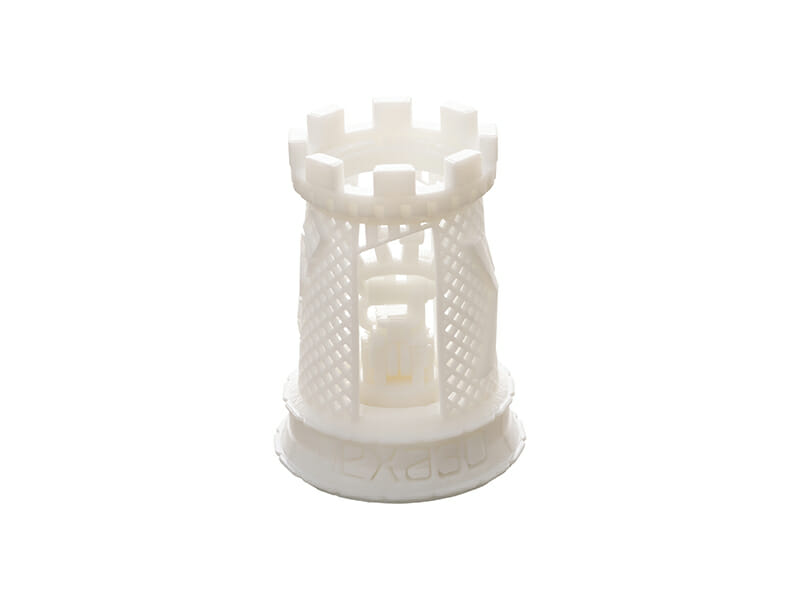

xMODEL15-White
High Accuracy, Fast Printing Photopolymer Serves Wide Variety of Modeling Applications. *NXE Pro Series and XiP only.Watch VideoTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Modulus of Elasticity 1800 MPa ASTM D638 type4 Tensile Strength 55 MPa ASTM D638 type4 Elongation at Break 10 % ASTM D638 type4 Density 1.09 – 1.10 g/cc GB/T 4472 Viscosity 200 – 300 MPA.s GB/T 22235 Hardness 78 – 80 Shore D ASTM D2240 Heat Deflection Temperature 50 °C GB/T 1634 Water absorption 0.7 % Immersion after 24 hrs -

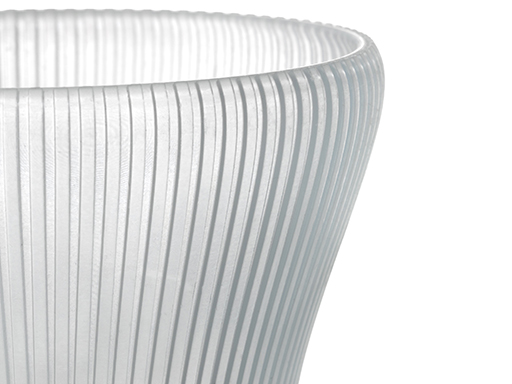

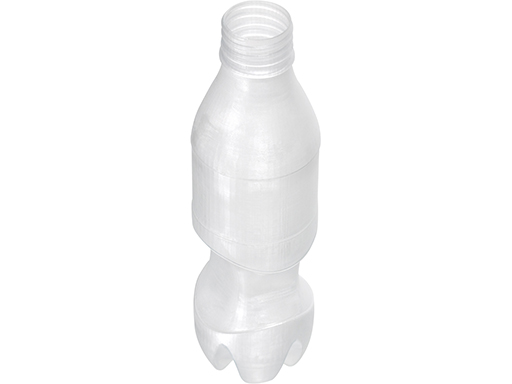

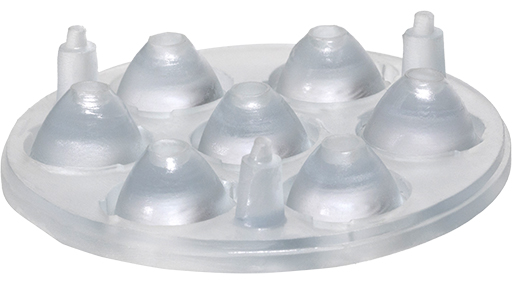

xMODEL17-Clear
High-Clarity, Prototyping, Feature Fine Detail, Product PackagingWatch VideoTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Modulus 1213 MPa ASTM D638 Ultimate Tensile Strength 3.0 MPa ASTM D638 Tensile Elongation at Break 22 % ASTM D638 Flex Modulus 1467 MPa ASTM D790 Flex Strength 57 MPa ASTM D790 HDT at 0.45 MPa 47 °C ASTM D648 Notched Izod 47 J/m ASTM D256 Water Absorption 0.242 % ASTM D570 -
xMODEL2505
Measurement Value Unit Test Method Tensile Modulus 2.5 Gpa ASTM D638 Ultimate Tensile Strength 54 Mpa ASTM D638 Tensile Elongation at Break 4 % ASTM D638 Flex Modulus 2.1 Gpa ASTM D790 Flex Strength 83 MPa ASTM D790 Hardness (Shore D) 73 ASTM D2240 -

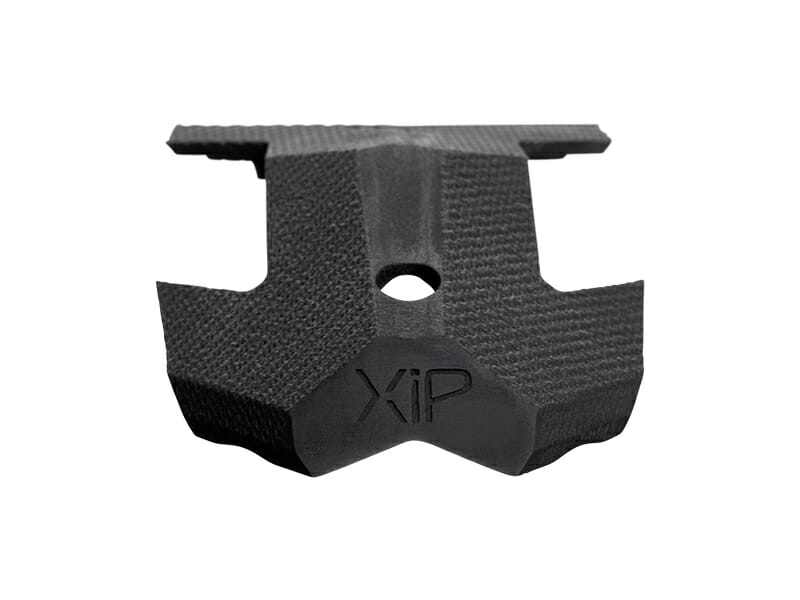

xMODEL35-Black
Rigid Resin with Optimum Combination of Strength, Stiffness and Temperature ResistanceWatch VideoTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Viscosity, 30 °C 630 mPas Cone/Plate Rheometer1 Yield Strength 160 mPas Cone/Plate Rheometer1 Density (printed part) 1.2 g/cm³ ASTM D792 Density (liquid resin) 1.11 g/cm³ ASTM D4052-18a E Modulus 2600 MPa ASTM D638 Ultimate Tensile Strength 62 MPa ASTM D638 Elongation at Break 10 % ASTM D638 Flexural Modulus 2300 MPa ASTM D790 缺口悬臂梁式 108 MPa ASTM D790 缺口悬臂梁式(Machined), 23 °C 21 J/m ASTM D256 Unnotched IZOD, 23 °C 112 J/m ASTM D256 Charpy notched, 23 °C 1.3 kJ/m² ISO 179-1 HDT at 0.45 MPa 87 °C ASTM D648 HDT at 1.82 MPa 64 °C ASTM D648 Flammability HB UL 94 1.5 mm Shore D 83 ASTM D2240 Water Absorption, Short Term (24 hours 0.42 % ASTM D570 -

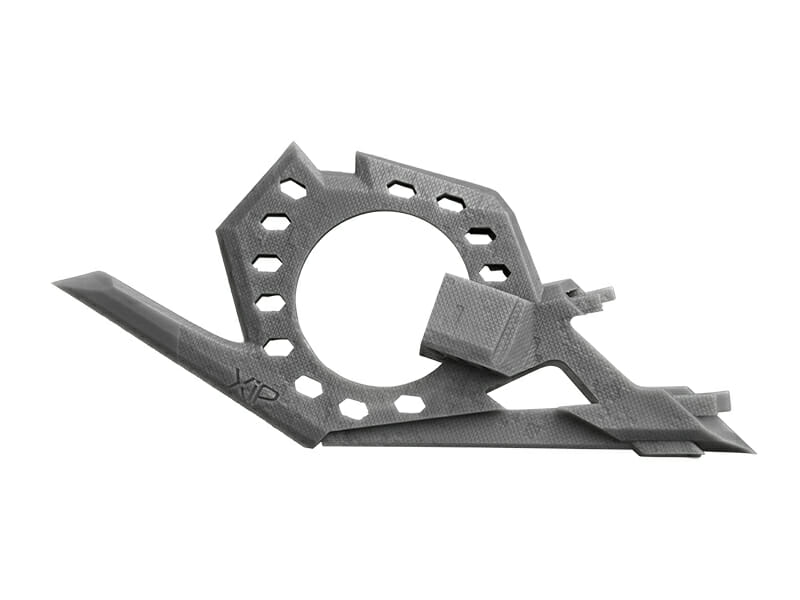

xMODEL35-Gray
Rigid Resin with Optimum Combination of Strength, Stiffness and Temperature ResistanceWatch VideoTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Viscosity, 30 °C 630 mPas Cone/Plate Rheometer1 Yield Strength 160 mPas Cone/Plate Rheometer1 Density (printed part) 1.2 g/cm³ ASTM D792 Density (liquid resin) 1.11 g/cm³ ASTM D4052-18a E Modulus 2600 MPa ASTM D638 Ultimate Tensile Strength 62 MPa ASTM D638 Elongation at Break 10 % ASTM D638 Flexural Modulus 2300 MPa ASTM D790 缺口悬臂梁式 108 MPa ASTM D790 缺口悬臂梁式(Machined), 23 °C 21 J/m ASTM D256 Unnotched IZOD, 23 °C 112 J/m ASTM D256 Charpy notched, 23 °C 1.3 kJ/m² ISO 179-1 HDT at 0.45 MPa 87 °C ASTM D648 HDT at 1.82 MPa 64 °C ASTM D648 Flammability HB UL 94 1.5 mm Shore D 83 ASTM D2240 Water Absorption, Short Term (24 hours 0.42 % ASTM D570 -

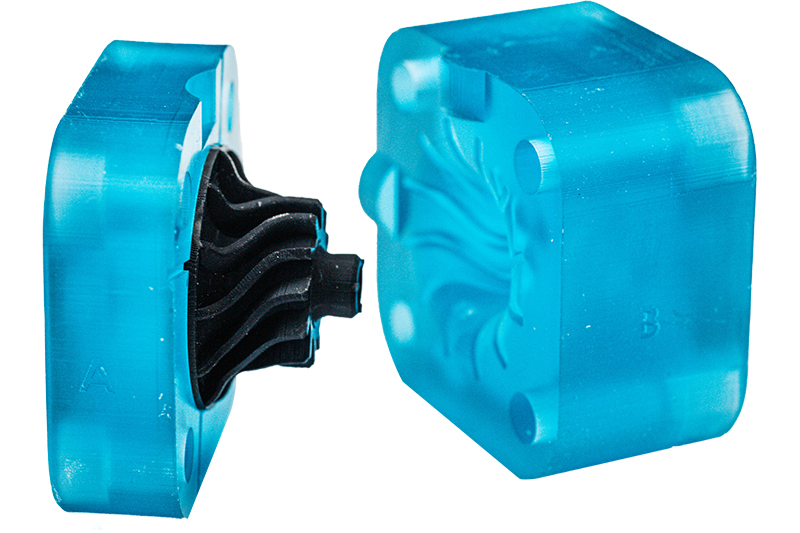

xMOLD
xMOLD is a high-performance dissolvable resin developed for Freeform Injection Molding (FIM).Technical DatasheetMeasurement Value Unit Test Method Ultimate tensile strength 3.8 ± 3 MPa ASTM D638 Young’s Modulus 1152 ± 284 MPa ASTM D638 Tensile stress at break 31日±2 MPa ASTM D638 Hardness (Post-cure) Shore D 80 ASTM D2240 Toughness 18 ± 4 MPa ASTM D638 Thermal conductivity 0.187 W/m K ISO 22007-2 (2015) Dissolvability Fully dissolvable Submerged in demolding solvent Color Transparent blue Visual -

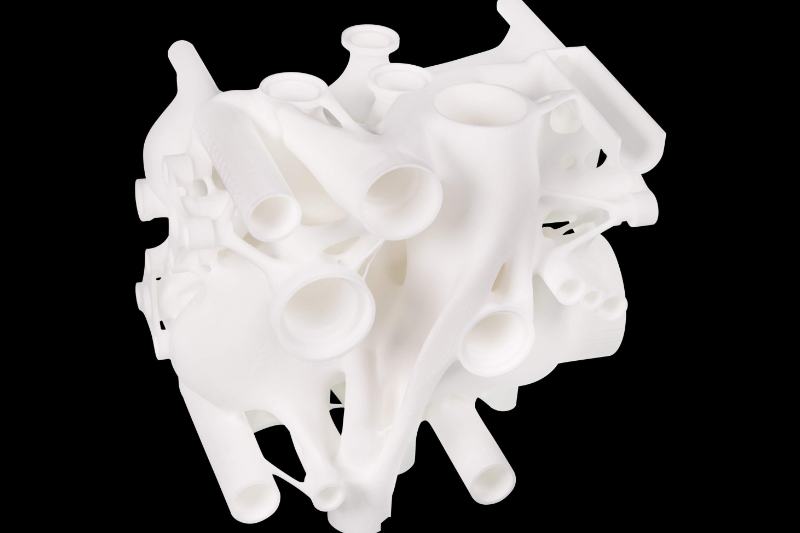

xPA11
Measurement Value Unit Test Method Tensile Modulus 1500 MPa ISO 527 Tensile strength at yield 45-50 MPa ISO 527 Elongation at yield 18-24 % ISO 527 Tensile strength at break 45 % ISO 527 Elongation at break 45 % ISO 527 Flexural modules 1200 MPa ISO 178 (23°C) Shore D hardness 77 ISO 868 (23°C) Impact strength (Charpy – unnotched) No break ISO 179 1eU (23°C) -

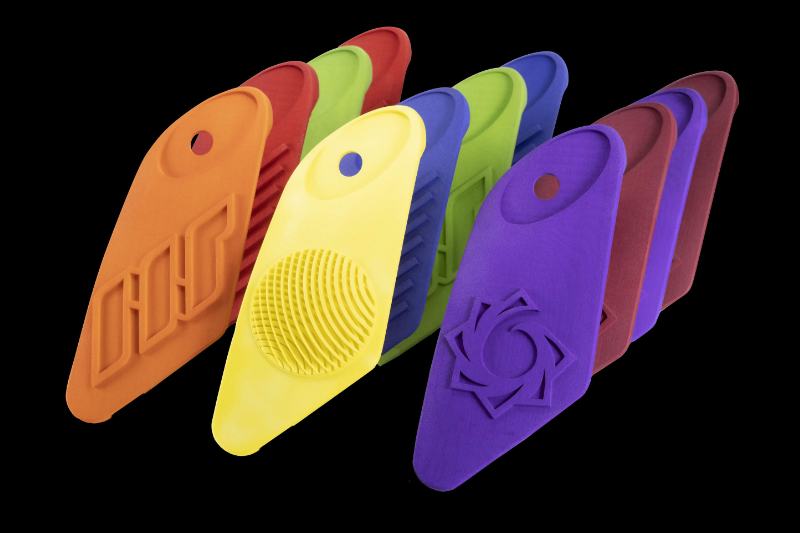

xPA12
Measurement Value Unit Test Method Tensile modulus 247 ksi ASTM D638 Young’s strength 6962 psi ASTM D638 Elongation at break 24 % ASTM D638 Flexural modulus 217 ksi ASTM D790 Flexural strength 8412 psi ASTM D790 Shore D – hardness 75 – ASTM D2240 -
xPEEK147
Measurement Value Unit Test Method Tensile Modulus 3.190 MPa ASTM D638 Ultimate Tensile Strength 75 MPa ASTM D638 Tensile Elongation at Break 3. % ASTM D638 Flex Modulus 3.170 MPa ASTM D790 Flex Strength 130 MPa ASTM D790 Hardness (Shore D) 94 ASTM D2240 Notched Izod 15 J/m ASTM D256 HDT @0.45 MPa 238 oC ASTM D648 Water Absorption 0.25 % ASTM D570 -
xPP405-Black
Measurement Value Unit Test Method Tensile Modulus 1300 MPa ASTM D638 Ultimate Tensile Strength 3.5 MPa ASTM D638 Tensile Elongation at Break 100 % ASTM D638 Flex Modulus 1300 MPa ASTM D790 Flex Strength 45 MPa ASTM D790 Hardness (Shore D) 80 ASTM D2240 Notched Izod 62 J/m ASTM D256 HDT @0.45 MPa 53 oC ASTM D648 Water Absorption 1.00 % ASTM D570 -

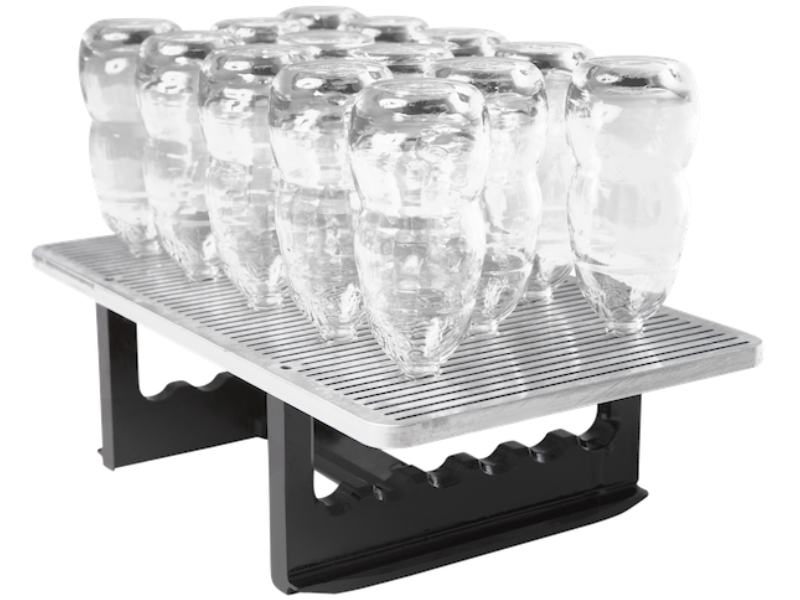

xPP405-Clear
End Use Parts for Packaging, Bottling, Piping, Consumer and Industrial ApplicationsTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Modulus 1300 MPa ASTM D638 Ultimate Tensile Strength 3.5 MPa ASTM D638 Tensile Elongation at Break 100 % ASTM D638 Flex Modulus 1300 MPa ASTM D790 Flex Strength 45 MPa ASTM D790 Hardness (Shore D) 79 ASTM D2240 Notched Izod 62 J/m ASTM D256 HDT @0.45 MPa 53 oC ASTM D648 Water Absorption 2.00 % ASTM D570 -

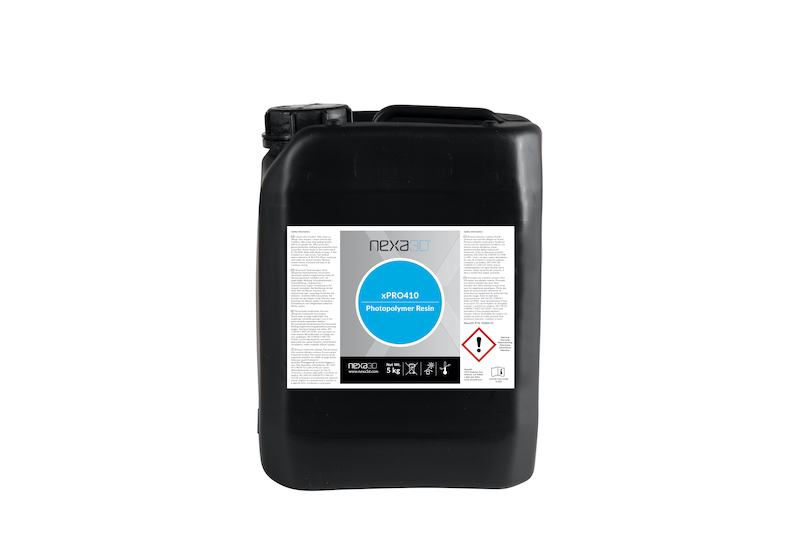

xPRO410
Quick Design Verification Models, Display Models, Models where accuracy and resolution are criticalTechnical Datasheet Safety DatasheetMeasurement Value Unit Test Method Tensile Modulus 2365 MPa D638 Ultimate Tensile Strength 41 MPa D638 Tensile Elongation at Break 5.5 % D638 Hardness (Shore D) 79 D2240 Notched Izod 25 J/m D256 HDT @0.45 MPa 61 oC D648 Water Absorption 0.46 % D570
2023 Material Guide
Featuring xCERAMIC, xPEEK, xABS, xPP, and More.
