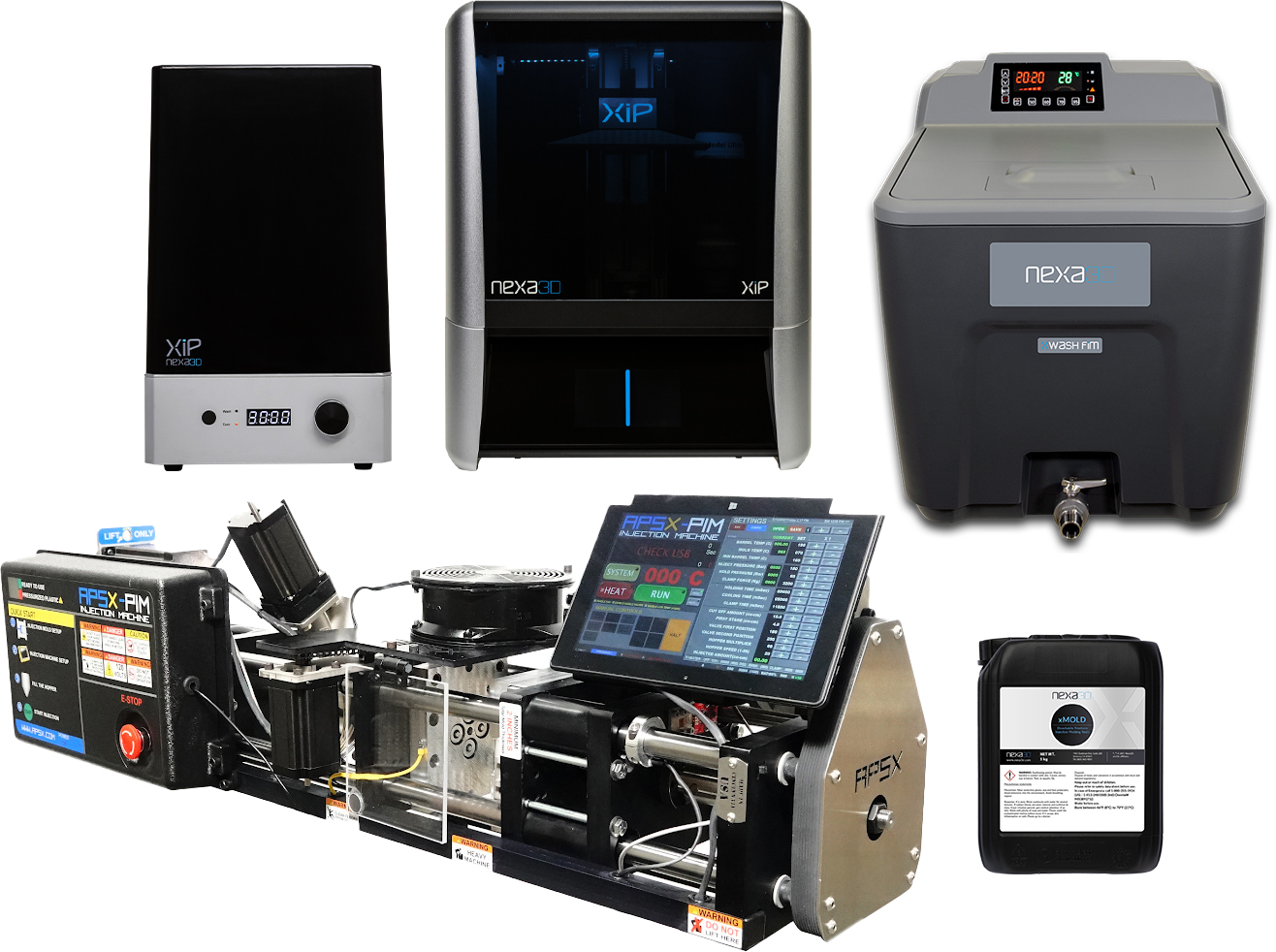

The Complete Desktop FIMPackage
- XiP Desktop 3D Printer
- xWASH FiM & Wash+Cure
- APSX PIM Molding Unit
- xMOLD Resin (5kg)
- XiP Build Plate
- Evercare Service Plan (1 year)
- FREE—Mold Generator Software (1 year)
$29,912
What’s Included in FIM Desktop Package
Welcome to the new era of desktop manufacturing with an all-inclusive Freeform Injection Molding Desktop Package. It includes everything you need to start printing tools and then produce parts right on your desktop. In a rapidly evolving product development process, simplicity, speed, and cost-effectiveness are paramount. We’ve got it all covered, with a 3D printer platform that covers your entire range of applications, from prototyping to production.
XiP Desktop 3D Printer
Ultrafast, compact production of 3D-printed parts and tools
- Print volume: 4.8 liters
- Build volume: 195 x 115 x 210 mm
- Pixel size: 52 µm
- Print speed up to 180 mm/hour
- Auto-dispensing of resin
- Heavy-duty design
Wash + Cure
A two-in-one workstation for compact operations
- Washing of loose parts, or parts on build plate, supported
- Washing with stirring for maximum effect
- Curing on turn-table for even application of UV light
- 405 nm wavelength for compatibility with most resins
xWASH FIM
For rapid and safe dissolving of xMOLD 3D-printed injection mold tooling
- Demolding at up to 85°C, for faster processing
- Agitation further speeds up the process
- Capacity of 46.2L allows for processing of large batches

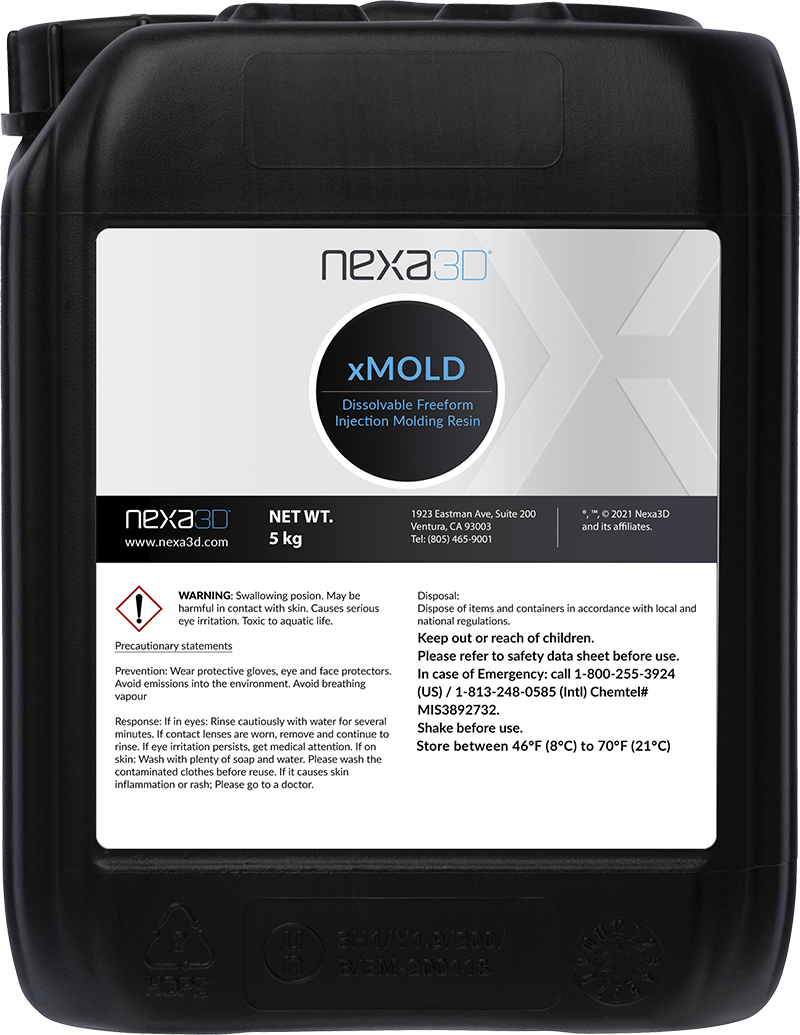

xMOLD
The most versatile 3D printed injection mold tooling resin
- Withstands up to 400°C, enabling the molding of PEEK and other complex performance materials
- Soluble, for maximized mold design freedom while enabling unlimited part complexity
- Low-stick, for easy mechanical separation
- Machinable, for easy post-processing and process acceleration

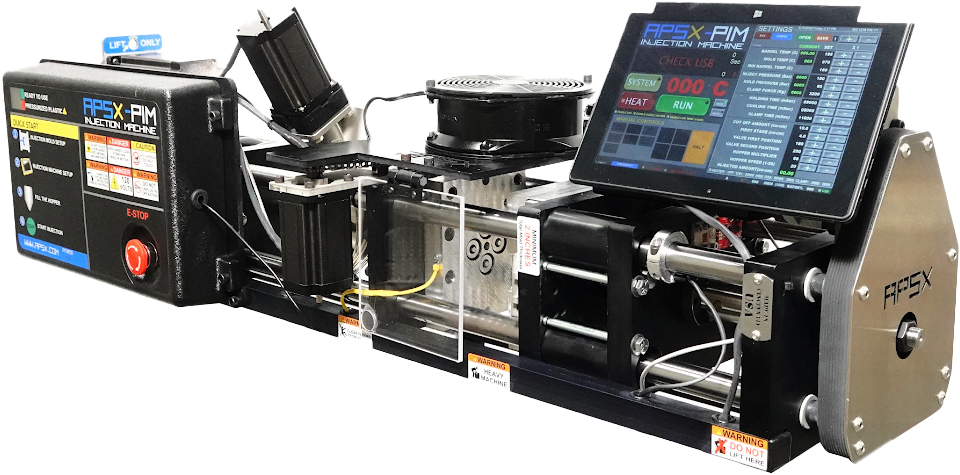

APSX-PIM Desktop Molding Press
世界上最紧凑的注塑压力机
- Max. melt temperature:315°C (600°F)
- Max. clamp force:5T (11,023 lbs)
- Max. shot size:30 cu-cm (1.83 cu-in)
- Max. Opening stroke:14 cm
- Injection pressure:345 PSI (5000 BAR)
- Mold size:4.8″ x 6.0″ (12.2 x 15.2 cm)
- Parts as large as:100 sq-cm (15 sq-in)
Get started by talking to an expert today!
