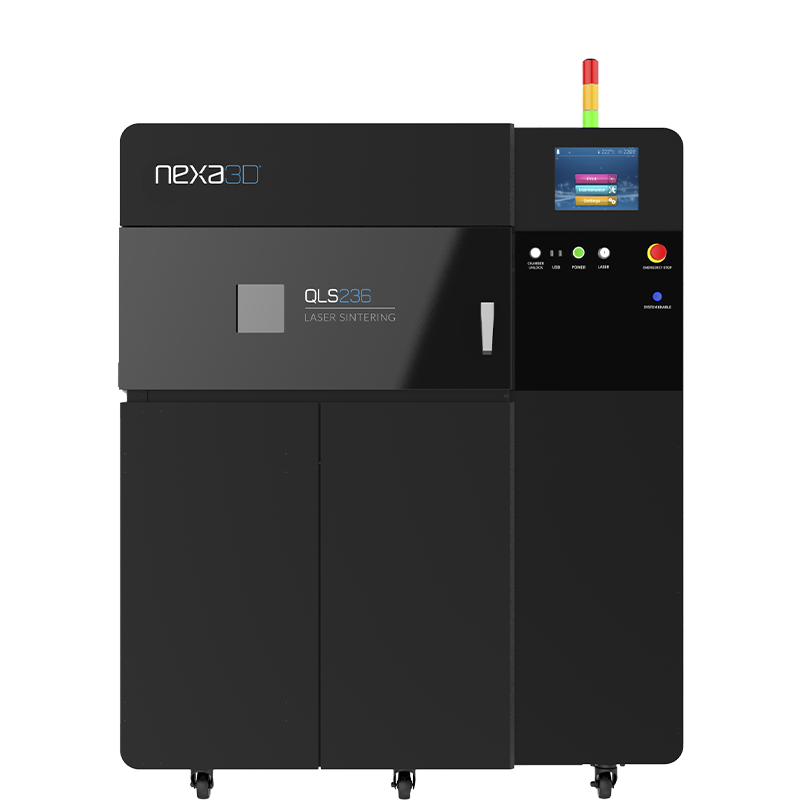

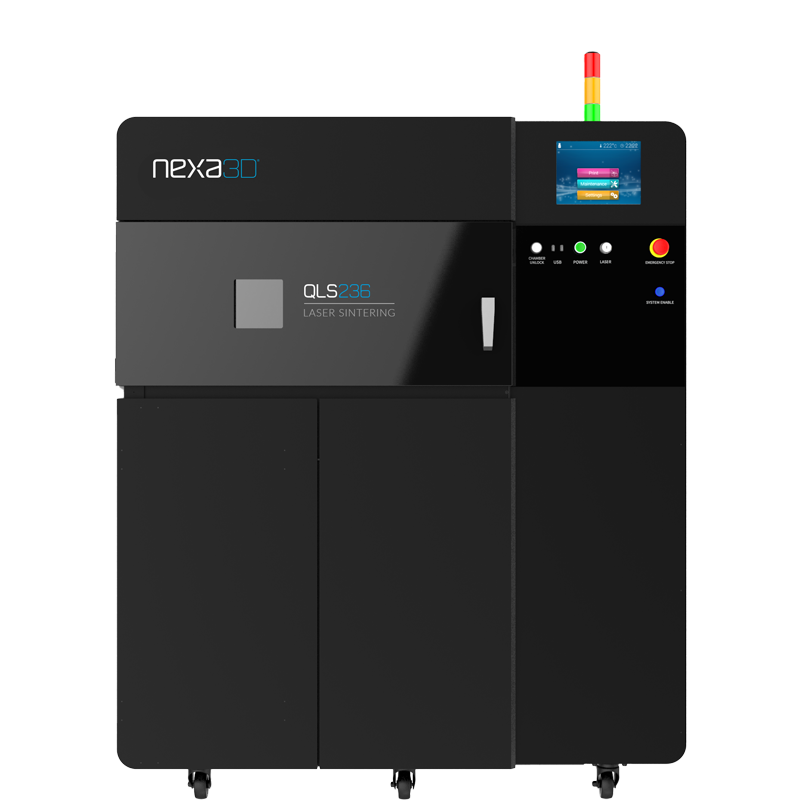

Fast Cycle SLS 3D Printer
QLS 236 is an open platform selective laser sintering (SLS) 3D printer with an unrivaled 21 hour cycle speed. It uses a single 60 Watt CO2 laser to produce prototypes and production parts with robust mechanical and thermal properties. In addition to a broad range of high-temp thermoplastic materials, it excels with recycled powders from HP®and EOS.
Increase Daily Output
With industry-leading cycle time of just 21 hours where the required cooling period is only 2 hours, the QLS 236 is a productivity powerhouse. It uses a single 60 Watt CO2 laser to increase your daily throughput without the need for a lengthy cooling period due to its smaller build chamber.
Material Flexibility
The QLS 236 is an open platform with 16+ qualified materials including a range of Polyamides, PP, PBT, TPU, as well as the patented metal powders from headmade materials®. In addition to the currently qualified materials, it excels with recycled powders from HP and EOS to extend the life of your powders and provide operational sustainability.
Lowest Total Cost of Ownership
自称的入口点最低的国家之一ional selective laser sintering market, combined with lower operating costs due to its powder refresh rate of just 20% and use of third party materials, the QLS 236 offers the lowest total cost of ownership for your industrial SLS 3D printing needs.
NEW MATERIAL
Metal 3D Printing with ColdMetalFusion
Excited to announce our partnership with Headmade Materials and enable metal 3D printing capability via ColdMetalFusion on all of our SLS platforms!
With the addition of metals, the QLS series printers offer the most flexible, affordable, and scalable industrial SLS solution for both polymer and metal part production.

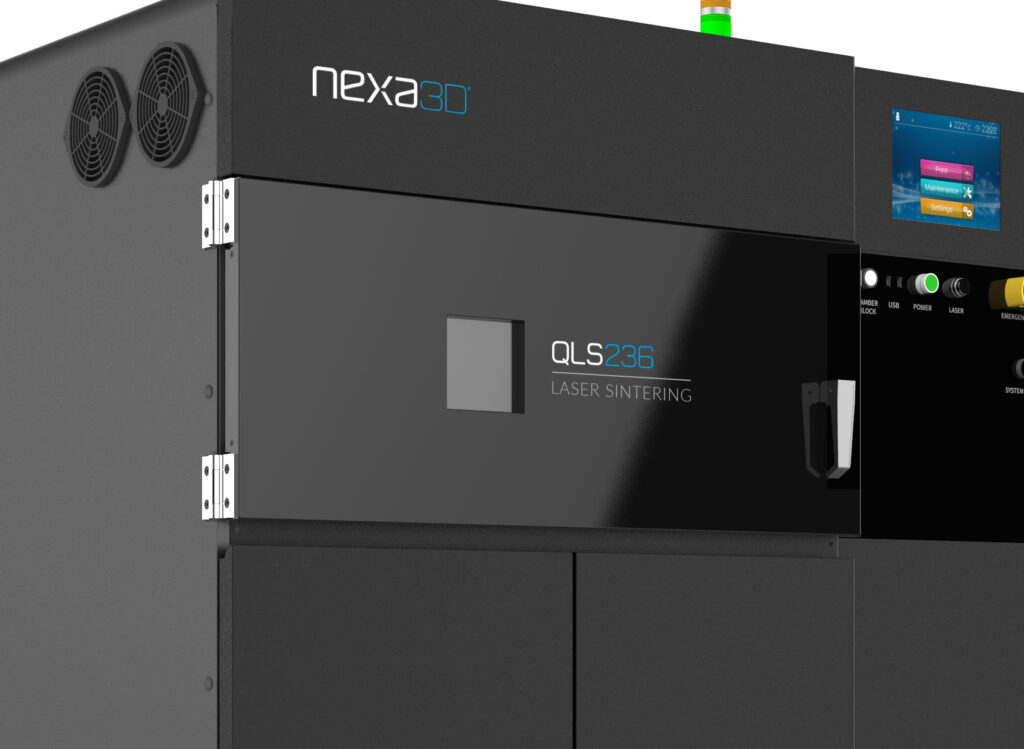

Specifications
| Technology | Selective Laser Sintering |
| Cycle Time | 21 hours |
| Build Volume | 230 x 230 x 250mm (9.0 x 9.0 x 9.8in) |
| Layer Thickness | 0.06 / 0.08 / 0.1 / 0.15 / 0.2 / 0.3mm |
| Build Speed | up to 22mm per hour |
| Accuracy | 0.2mm |
| Full Parameter Access | Yes |
| Laser Type | 1 x 60W CO2 |
| Printer Dimensions | 1,480 x 850 x 2,040mm (58.3 x 33.5 x 80.3in) |
Download Brochure
“The QLS 236 is the first industrial quality SLS printer at a sub-industrial price point. It paid for itself in the first three months.”
Umang Dua
President of TrySight
“The QLS 236 has proven itself to be a dependable workhorse, consistent in detail and reliable in performance. It allows us to focus on what matters to our customers, and that’s the reason we’ve chosen to expand our fleet to six machines.”
Josh Stover
Co-Founder of 3D Printing Tech
INTRODUCING
0% Interest Financing for Industrial 3D Printers.
Start printing now and pay over 36 months with 0% APR on approved credit. Offset upfront costs of hardware and put your capital back to work.
Open Material Platform
Your production capabilities with the QLS 236 are nearly limitless thanks to its open material platform, wide-use temperature range, and inert processing atmosphere. From common filled and unfilled nylons to rugged polymers like PBT, the QLS 236 is compatible with a versatile range of materials to ensure that you’ll have the right material for the job.
Intuitive Software
QLS 236 is powered by two advanced software suites, Buildware and XYZprint AMSLS. Buildware controls the sintering process while the XYZprint AMSLSallows users to start and monitor jobs remotely.
Cold Metal Fusion Compatible
Cold Metal Fusion by headmade materials®is a patented process that combines the advantages of fast cycle sintering with established powder metallurgy processes to create titanium and steel parts. Using a polymer-coated metal powder, the QLS 236 produces ‘green’ parts in a low temperature processing environment. Parts then go through a debinding and sintering process that burns out any remaining polymer and sinters metal particles together to form final metal components.
